》高電個強度超過4KV
》高絕緣強度超過100MQ/500VDC
》附過熱保護回路可防止過熱破壞
》耐瞬間電流超過額定電流10倍以上
》附雙重突波吸收回路有效防止突波破壞
》符合EN60947-4-3 和 EN60950標準
型號說明 選型報價請咨詢 156 0158 5576
| 產品型式 | 產品圖 | 產品型號 | 特點說明 |
| 標準型-AC to AC |  | ESR-40AA | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:40A max |

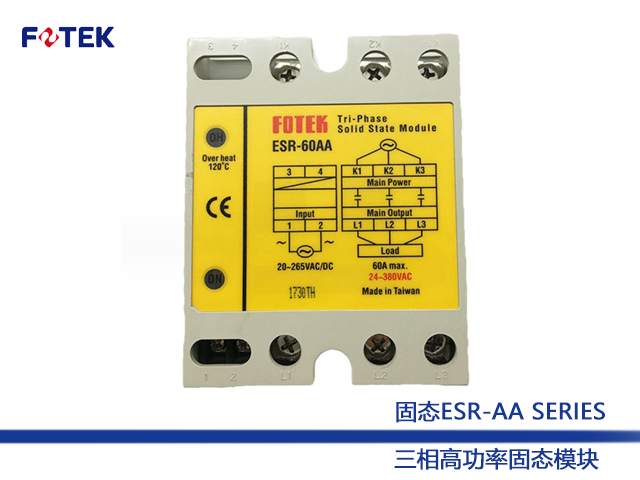

| ESR-60AA | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:60A max | ||
| ESR-80AA | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:80A max. | ||
| ESR-100AA | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:100A max | ||

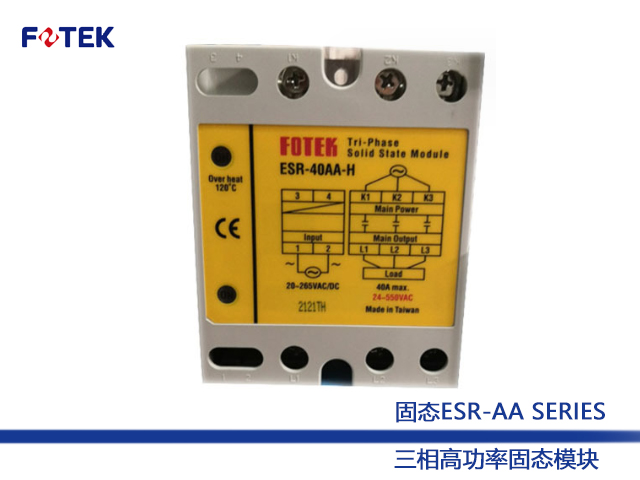

| 高壓型-AC to AC |  | ESR-25AA-H | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:25A max. |
| ESR-40AA-H | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:40A max. | ||
| ESR-60AA-H | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:60A max | ||
| ESR-80AA-H | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:80A max. | ||
| ESR-100AA-H | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:100A max. | ||

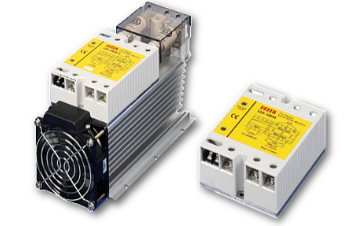

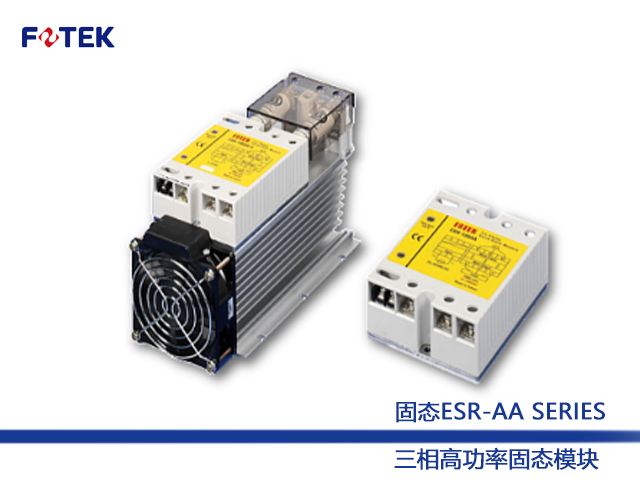

| 標準型-AC to AC(含風扇+ FUSE) |  | ESR-40AA+ | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:40A max |
| ESR-60AA+ | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:60A max. | ||
| ESR-80AA+ | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:80A max | ||
| ESR-100AA+ | 輸入電壓:20~265VAC/DC、負載電壓:24~380VAC、額定電流:100A max. | ||
| 高壓型-AC to AC(含風扇+ FUSE) |  | ESR-40AA-H+ | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:40A max |
| ESR-60AA-H+ | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:60A max | ||
| ESR-80AA-H+ | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流:80A max. | ||
| ESR-100AA-H+ | 輸入電壓:20~265VAC/DC、負載電壓:90~480VAC、額定電流100A max. |
共同參數規格 選型報價請咨詢 156 0158 5576
| 輸入電壓 | 20~265VAC/DC |
| 關閉電壓 | ＜10 VAC/DC |
| 觸發電流 | 3VA max. |
| 控制方式 | Zero cross switching |
| 泄漏電流 | 5 mA max. |
| 反應時間 | 8.3 ms (60Hz) |
| 過熱保護 | Turn off output over 120℃ ; Reset below 110℃ |
| 輸入耐突波 | 2 KV (EN61000-4-4) |
| 電介強度 | 4 KVrms (EN60950/VDE0805) |
| 絕緣強度 | 100MQ/500VDC(EN60950/VDE0805) |
| 工作環境 | -40°C~+80℃；35-85%RH |
| 產品認證 | CE |

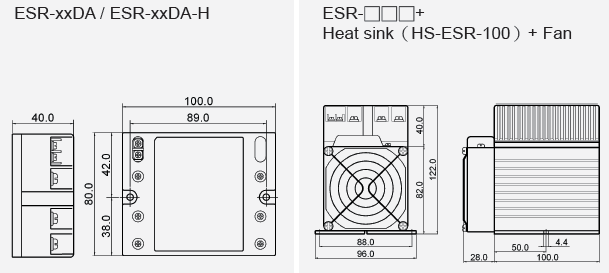

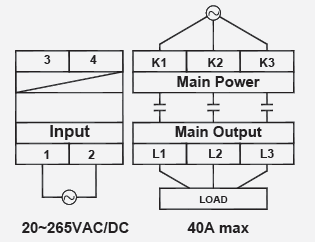

接線圖&外形尺寸 選型報價請咨詢 156 0158 5576
